Unmanned Aerial Vehicle(UAV)

Company products cover all the required sectors and parts of UAV flight platform. Adopt the industrial grade flight control with triple redundancy autopilot system, UAV can go through harsh environmental testing.

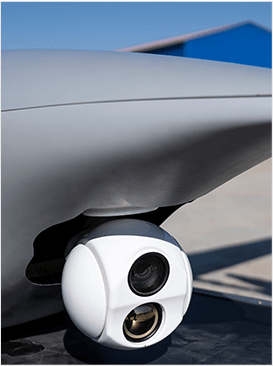

Landing and take-off process has strong adaptability under difficult environmental condition, provide the reliable guarantee for the flight operation.All flight platform adopts highly integrated avionics system, a series of pod loads and digital, graphic ,audio integrated low latency data link. It supports RTK-PPK high precision positioning system, provides a reliable comprehensive guarantee for flight operations.

ZT-3VS

Electric Vertical Take-off and Landing
Fixed-Wing UAV for Public Security Applications

ZT-3VS

Electric Vertical Take-off and Landing
Fixed-Wing UAV for Public Security Applications

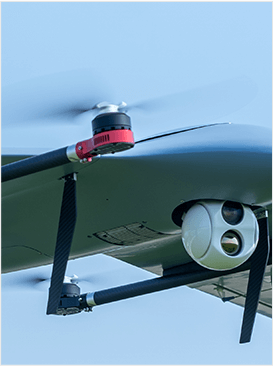

ZT-3V is an electric vertical take-off and landing hybrid fixed-wing UAV, with a quadrotor and fixed-wing composite pneumatic layout. Enabled by the rotors, it is capable of taking-off and landing vertically yet still have a enduring flight time afforded by the fixed wings. Moreover, it can operate under complex take-off and landing conditions due to its high maneuverability and flexibility.

ZT-39V

Electric-Gasoline Hybrid Composite Wing UAV

ZT-39V

Electric-Gasoline Hybrid Composite Wing UAV

ZT-29V electric-gasoline hybrid VTOL fixed-wing UAV features high aspect ratio fixed wing,inverted V-shaped tail,double-boom and rear propeller. Its four-rotor part is combined with the double-boom of the fixed wing part. It is capable of taking-off and landing vertically as a quadrotor and cruising as a fixed-wing aircraft. The Avionic system is compacted with flight control module, RTK, data transfer, and AI-enabled algorithms. The set comes with a relay,remote control pad with well-designed user interface. It is ideal for patrolling and surveying.

ZT-3VS

Electric Vertical Take-off and Landing
Fixed-Wing UAV for Surveying and Mapping

ZT-3VS

Electric Vertical Take-off and Landing
Fixed-Wing UAV for Surveying and Mapping

ZT-3VS is an electric vertical take-off and landing hybrid fixed-wing UAV, with a quadrotor and fixed-wing composite pneumatic layout. It features a smooth design that offers high drag-to-lift ratio with ample power system, and enduring flight time as long as 120 minutes. It's equipped with triple redundancy autopilot system, ensuring a reliable flight for each take-off. Mechanically simple, ZT-3VS is highly maneuverable and agile. With a full-frame mirrorless camera, five spelling a full-frame camera, and a flying professional aerial camera , it's fully competent for land surveying and mapping applications.

UAV FORMATION

Outdoors Drone Light Show

Utilizing the most advanced self-organizing network(SON), artificial intelligence(AI), big data, cloud computing and other technologies, and 10 years rich experience of flight controller, we create a worldclass drone performance system. To display company LOGO, creative advertisement, modeling ideas in the night sky, we use innovative technology to create brand new media forms.

Indoors Drone light Show

Adopting indoor precision positioning technology,we have the ability to combine drone light show with the stage art. With this technology, drone light show is no longer subject to space size and geographical location. Engaged with dance,music,laser and other stage elements, we create extraordinary visual effects for party, annual meeting, news conference, science and technology education, exhibition and other occasions.

Intelligent Eye System In The Sky

Oil pipelines run hundreds of thousands of kilometers long. Pipelines go through complex terrain, such as rivers, canyons, mountains, etc.
Pipeline leakage is the main problems occurred every year. Manual inspection is very difficult, especially in the environment of complex terrain or natural disasters,
long-term inspection task and bad weather condition. Drone based Inspection has huge advantages of high efficiency and less investment.

Patroleum Application Case Study

Drone inspection service for an oil field of PetroChina

An oil production plant is located in the hilly area of a plateau and gully. The 3V drone is used to strengthen the inspection of oilfield production facilities. The pipeline spanning 513.6 km is inspected on a daily basis.
Safety inspections of well repairing, drilling, measuring, and construction sites were conducted. Inspections of key well sites were performed in secret at night to reduce oil theft.
Moreover, production site patrolling after rain and snow,pipeline inspection, and well station inspection in case of video interruption were also carried out.

Inspection Service of Long-distance Pipelines of an Oil Company Under the Sinopec

Thousands of kilometers of long-distance pipelines under the jurisdiction of an oil company in Guangdong have further extended the practical applications of 3V drones for routine video inspections.
Patrol distance can be maximized for a single vehicle by taking the AB point takeoff and landing method, which effectively reduces the takeoff and landing frequency and takes fully the advantage of UAVs as solutions to fast
and convenient aerial inspection.
